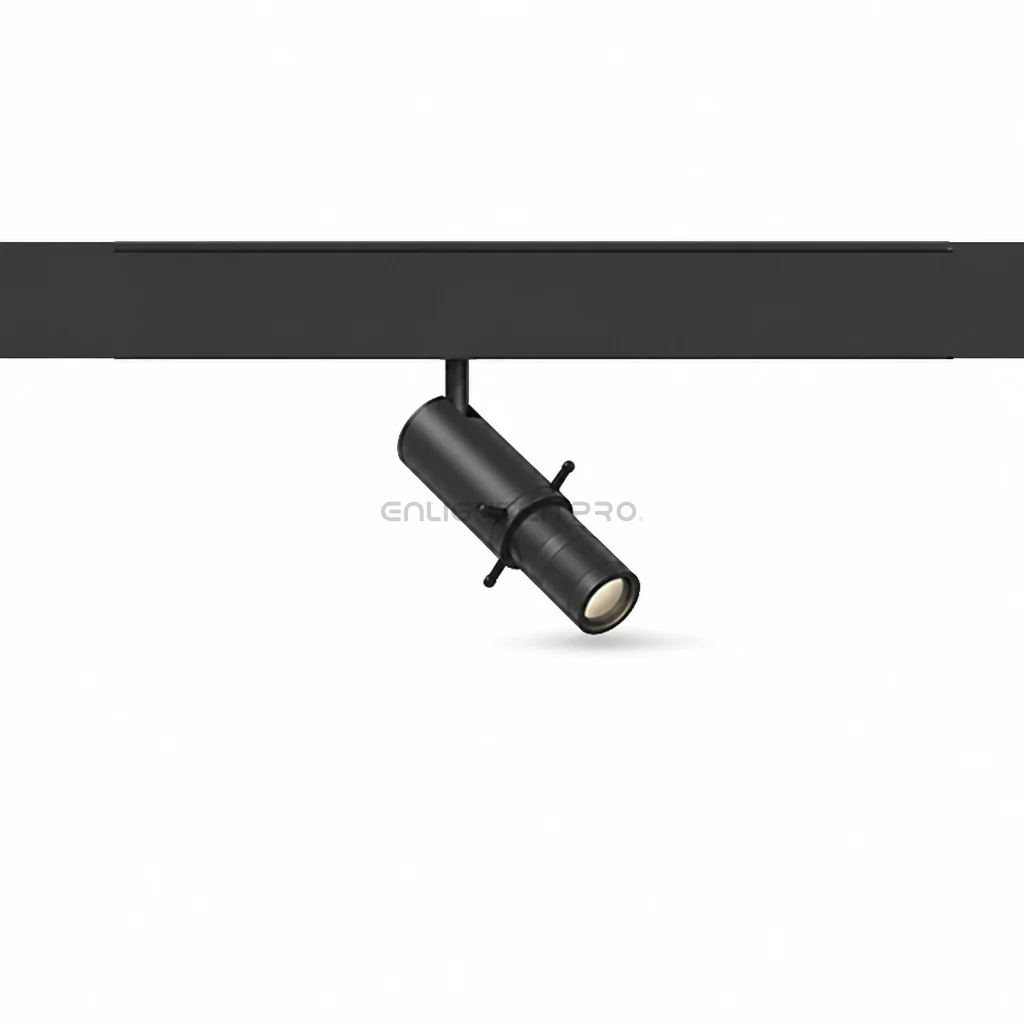

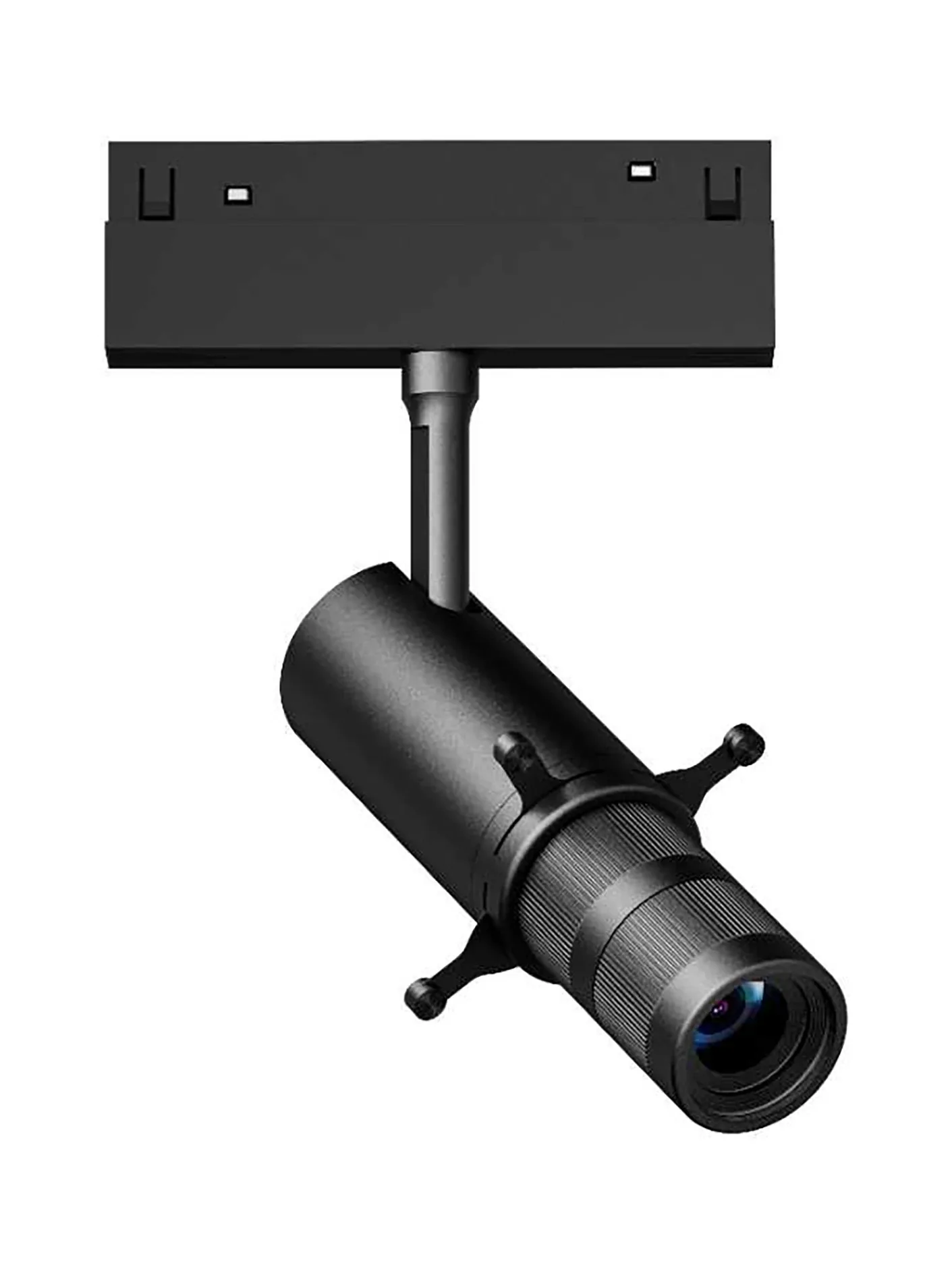

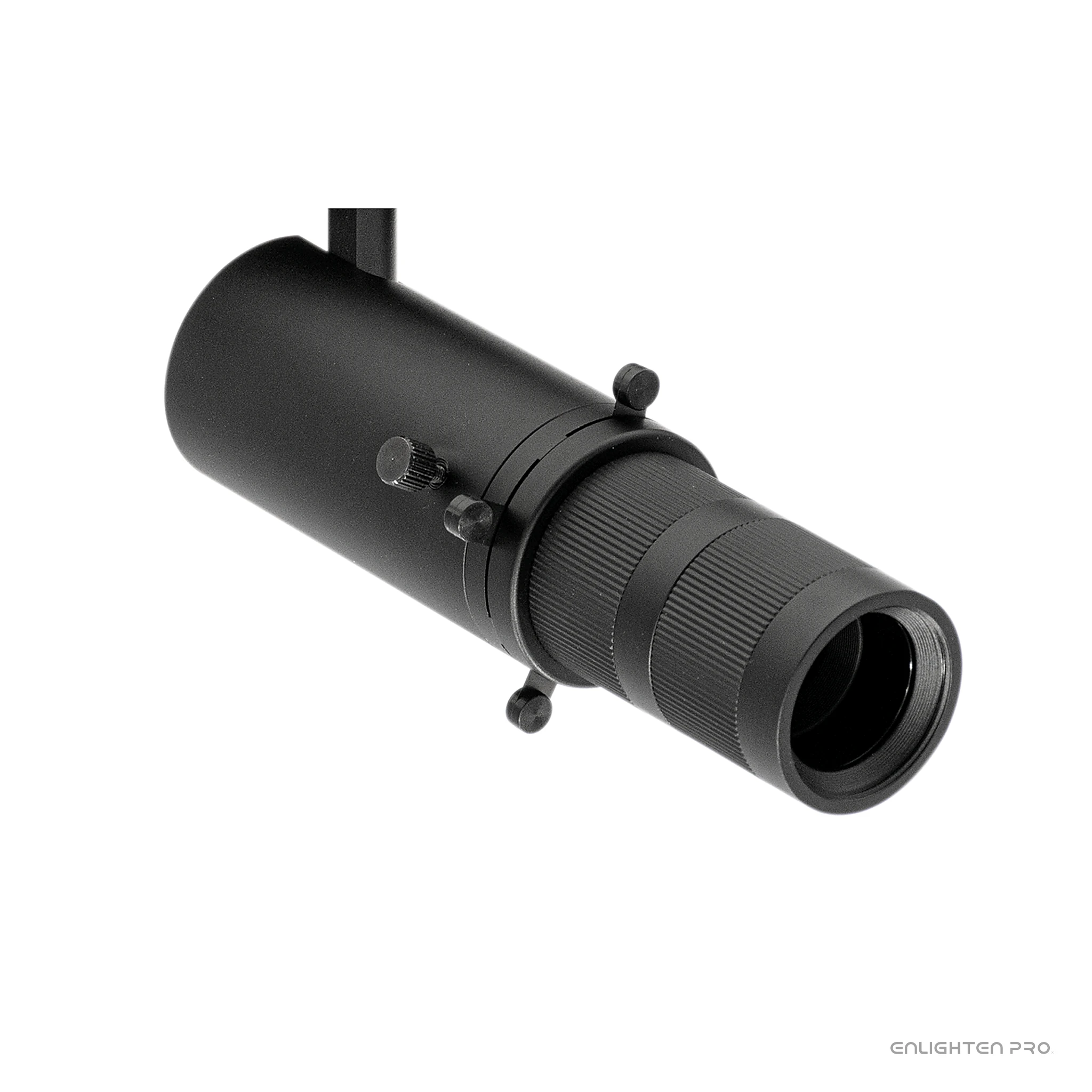

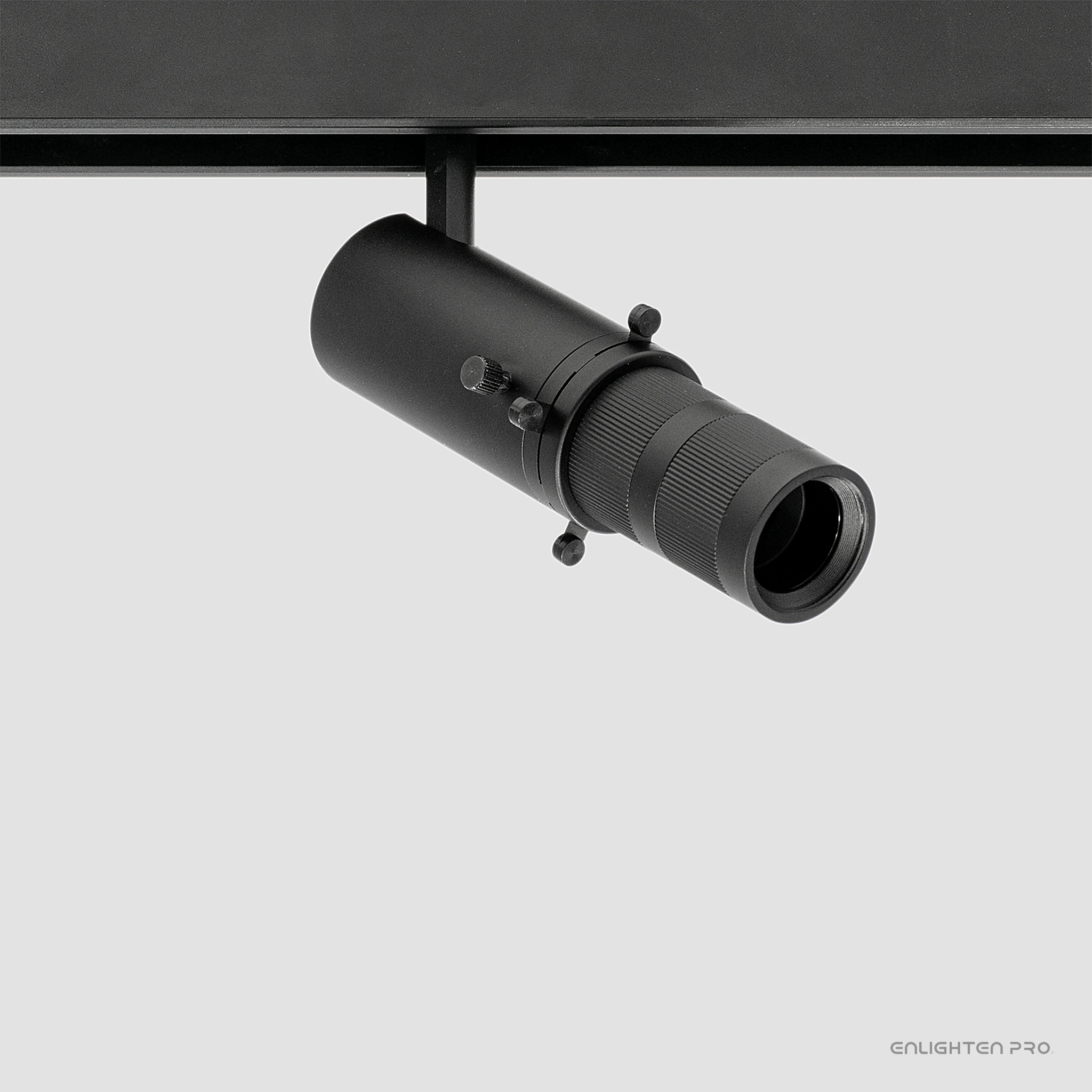

TL06 FrameOne – Premium Track Light
The Enlighten Pro TL06 FrameOne is a premium precision track light designed for museums, art galleries, and exhibition spaces. Featuring AL1070 single-piece cold forged construction with glass optics, it delivers exceptional color rendering (CRI 97+) with ultra-low distortion and glare.

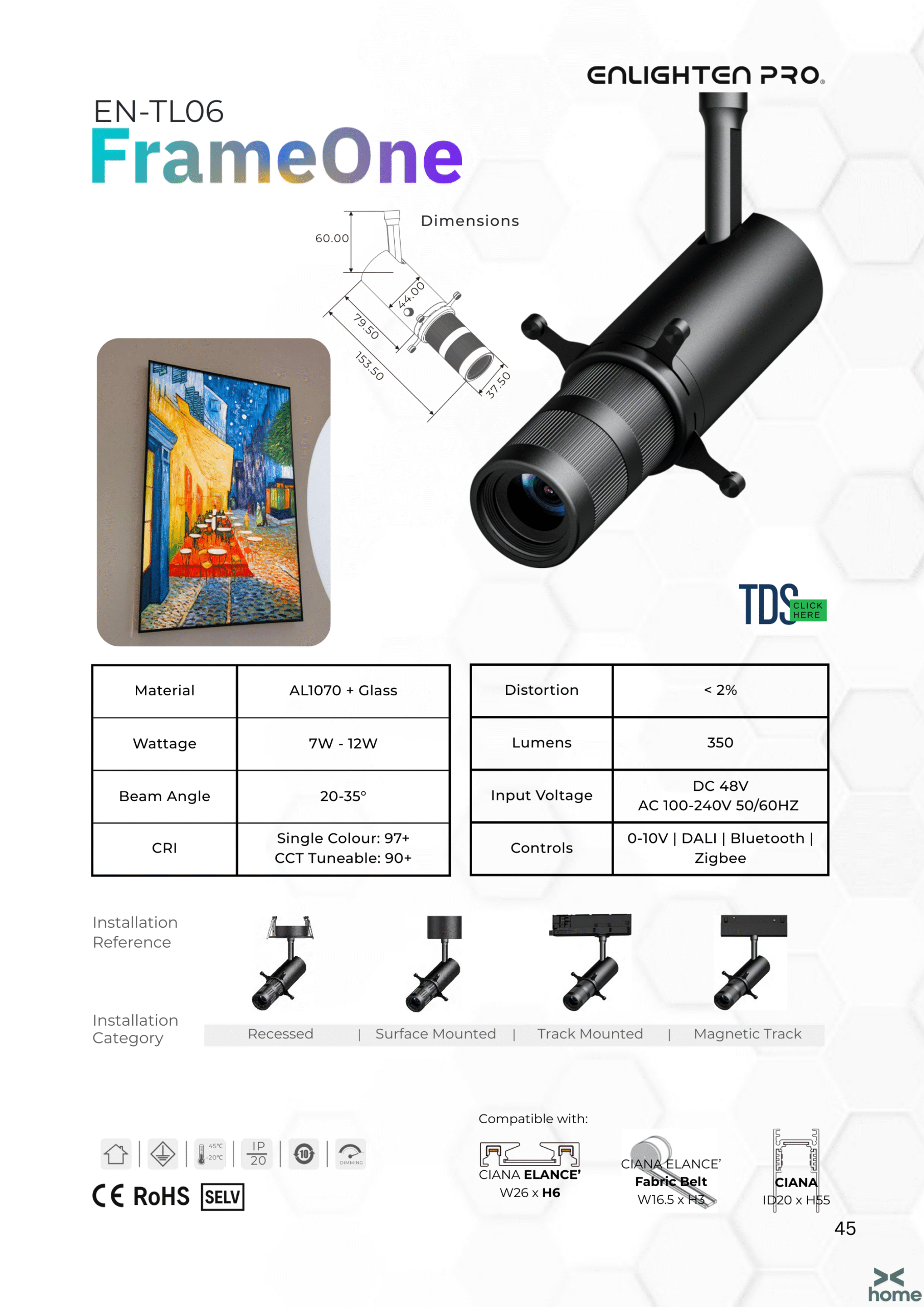

Specifications
| Body & Finish | AL1070 Single Piece Cold Forged |
| Optics | Glass |
| Wattage | 7W to 12W |

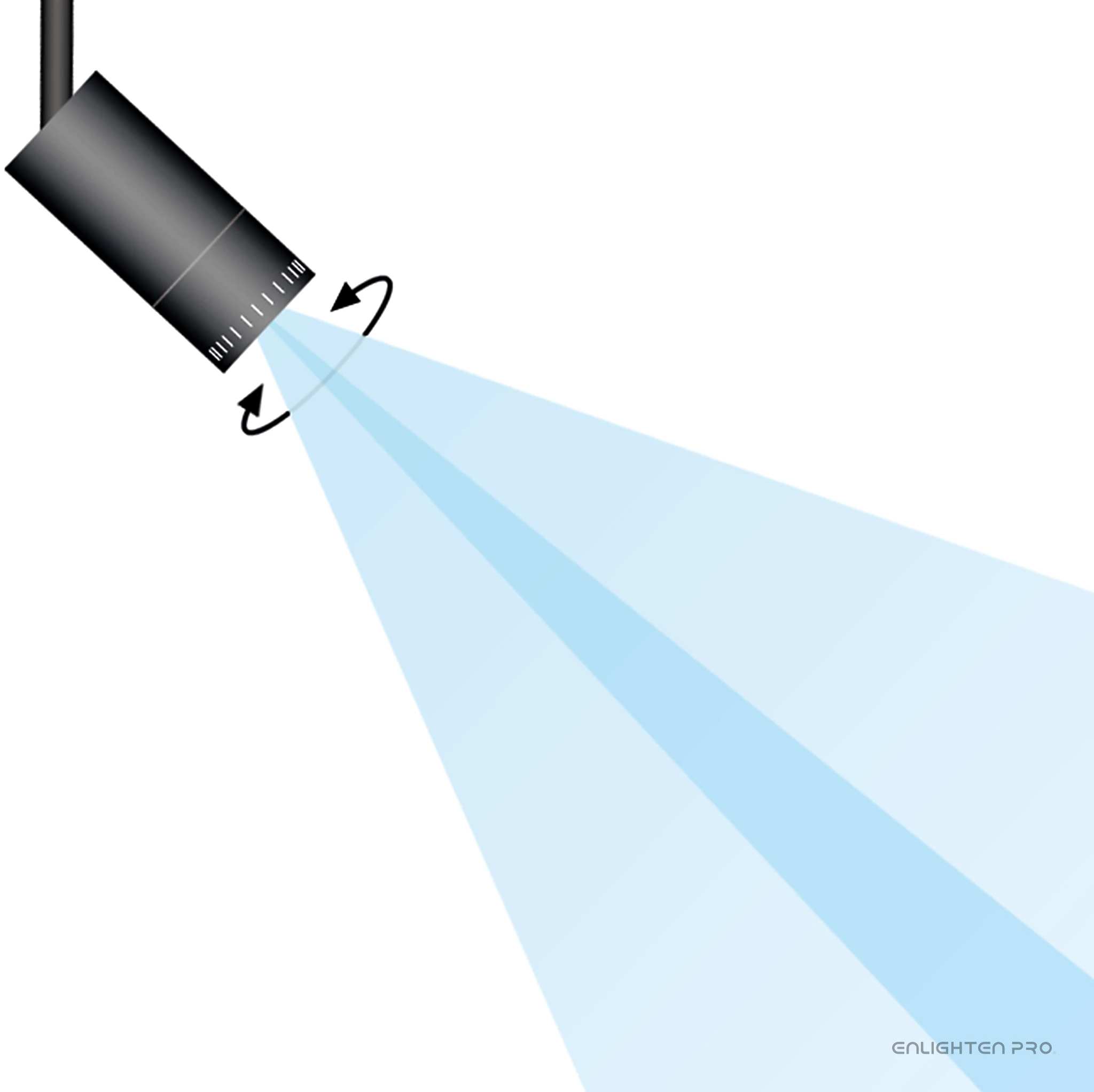

| Beam Angle | 20° – 35° |
| CRI | Single Colour 97+ / CCT Tuneable 90+ |
| Distortion | < 2% |
| UGR | < 13 |
| Lumens | 350 |
| Input Voltage | DC 48V / AC 100-240V 50/60Hz |
| Output | SELV 36V |
| Controls | 0-10V | DALI | Bluetooth | Zigbee |
| IP Rating | IP22 |
| Operating Temp | -40°C to 80°C |
| Humidity | 10% – 90% RH |
| Weight | 425 grams |
| THD | < 10% |
| Surge Protection | 3kV |
| Power Factor | > 0.95 |
| LED Lifespan | 50,000 hours |
| LED Brand | PRO / Cree / Bridgelux (COB) |
| CCT | 2700K | 3000K | 4000K |
| SDCM | 2 |
| Warranty | 2 Years |
Mounting Options
- Recessed
- Surface
- Track
- Magnetic Track
Beam Shapes
Cone, Trapezoid, Irregular Shape, Square, Rhombus, Triangle
Compatible Track Systems
- Ciana Elance (W26×H6)
- Ciana Elance Fabric Belt (W16.5×H3)
- Ciana (ID20×H55)
Dimensions
Body: 44mm × 60mm × 79.5mm | Total Length: 153.5mm | Width: 37.5mm
Applications
Museums, Art Galleries, Exhibition Spaces, Retail Displays, Hospitality
