EN-TL01 R&L Toup

Know More



TL01 TOUP Available in Lens & Reflector Models, as well as wall spot mounting

MODEL POWER SIZE
EN-TL01-10 10W 50 x 120
EN-TL01-20 20W 65 x 160
EN-TL01-30 30W 75 x 180
LED 140-150 lumens/watt gold-wire LM80 certified LED, CRI >80 (90/96 upon request)
Driver BIS-certified, HPF, THD<10%, minimal ripple, 2.5-4 kV Surge protection, OVP 440V
Optional LEDs Bridgelux | Edison
Optional Drivers Fulham | Osram | Philips

The Enlighten Pro EN-TL01 Toup is a professional-grade track light series designed for powerful, precision accent and display lighting. Available in both Reflector (EN-TL01R) and Lens (EN-TL01L) optical configurations, the Toup delivers outstanding beam control and high-lumen output — making it the go-to choice for retail showrooms, commercial galleries, museum exhibits, hospitality venues, and architectural lighting projects that demand both performance and versatility.

The Toup series offers three wattage options — EN-TL01-10 (10W, 50×120mm), EN-TL01-20 (20W, 65×160mm), and EN-TL01-30 (30W, 75×180mm) — each available in Reflector and Lens variants. Mounting options include surface spot, track-light, recessed spot, magnetic track-light, and wall spot, ensuring seamless integration into virtually any ceiling or wall configuration.

Key Features

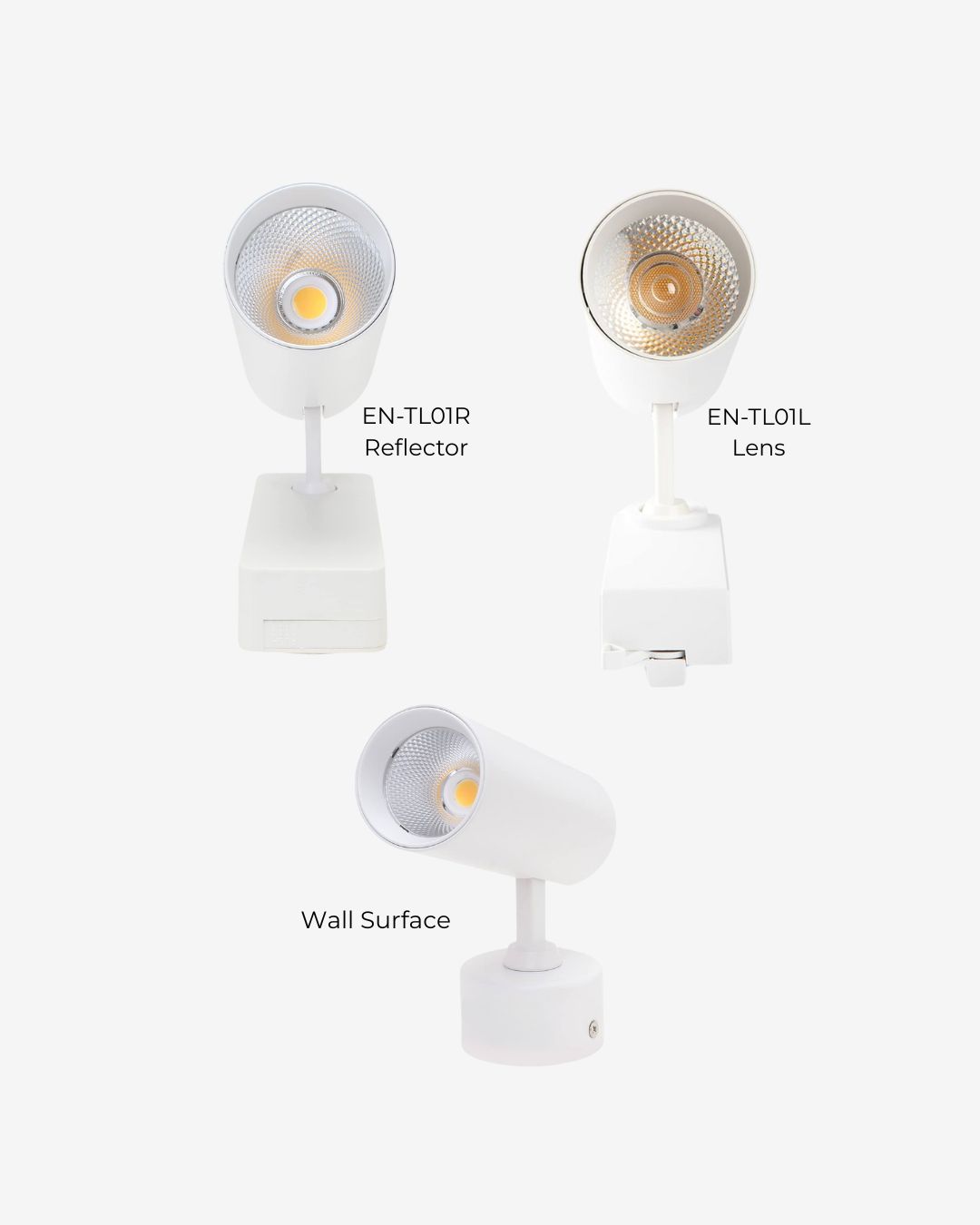

  • Available in Reflector (TL01R) and Lens (TL01L) optical configurations for tailored beam control
  • Three wattage tiers: 10W (50×120mm), 20W (65×160mm), and 30W (75×180mm)
  • Five mounting options: surface spot, track-light, recessed spot, magnetic track-light, and wall spot
  • High-efficiency 140–150 lm/W gold-wire LM80-certified LEDs, CRI > 80 (CRI 90/96 upon request)
  • BIS-certified HPF driver with THD < 10%, 2.5–4kV surge protection, OVP 440V
  • Optional premium LED upgrades: Cree, Bridgelux, or Edison
  • Optional premium driver upgrades: Fulham, Osram, or Philips
  • TRIAC and 0/1-10V dimming compatible
  • Ideal for retail, commercial, hospitality, museum, gallery, and architectural accent lighting

Disclaimer: Product images and specifications shown on this page are indicative only and may vary from the actual product. Please verify all specifications with our Sales & Support team before placing an order. Contact us at sales@enlighten.biz
