EN-DL03 2×2 — High-Performance SMD Panel Downlight
The EN-DL03 2×2 is a professional-grade 600×600mm SMD panel downlight engineered for commercial and institutional spaces. Featuring 48 high-efficacy gold-wire LM80-certified LEDs delivering 140–150 lumens per watt, it provides uniform, flicker-free illumination across standard 2×2 ft grid ceilings — ideal for offices, hospitals, schools, and retail environments.
Key Features
- 140–150 lm/W efficacy — gold-wire LM80-certified LEDs for maximum energy savings
- CRI >80 — excellent colour rendering (CRI 90/96 available on request)
- 48 SMD LEDs — evenly distributed for uniform, shadow-free illumination
- BIS-certified driver — high power factor, THD <10%, 2.5–4kV surge protection, OVP 440V
- Flexible wattage — 28W to 48W adjustable to match project requirements

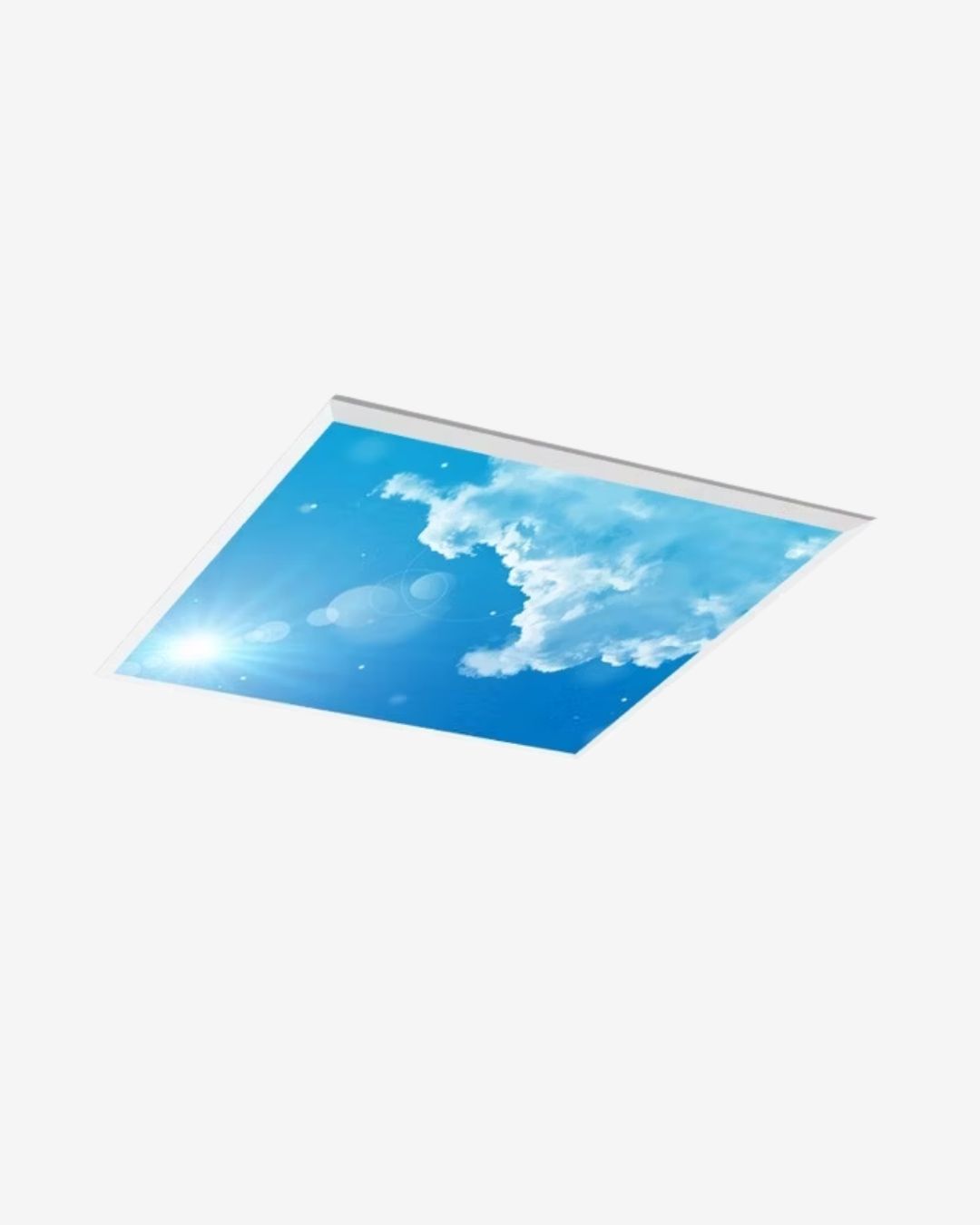

- Custom patterns available — skylight and tree designs upon request
- Premium driver options — Fulham, Osram, and Philips upgrades available
- Dimmable — TRIAC & 0/1-10V dimming compatible
Available Models
| Model | Power | Size (mm) | Cutout (mm) | LEDs | Mounting |
|---|---|---|---|---|---|
| EN-DL03-48 | 28–48W | 600 × 600 | 595 × 595 | 48 | Recessed / Suspended |

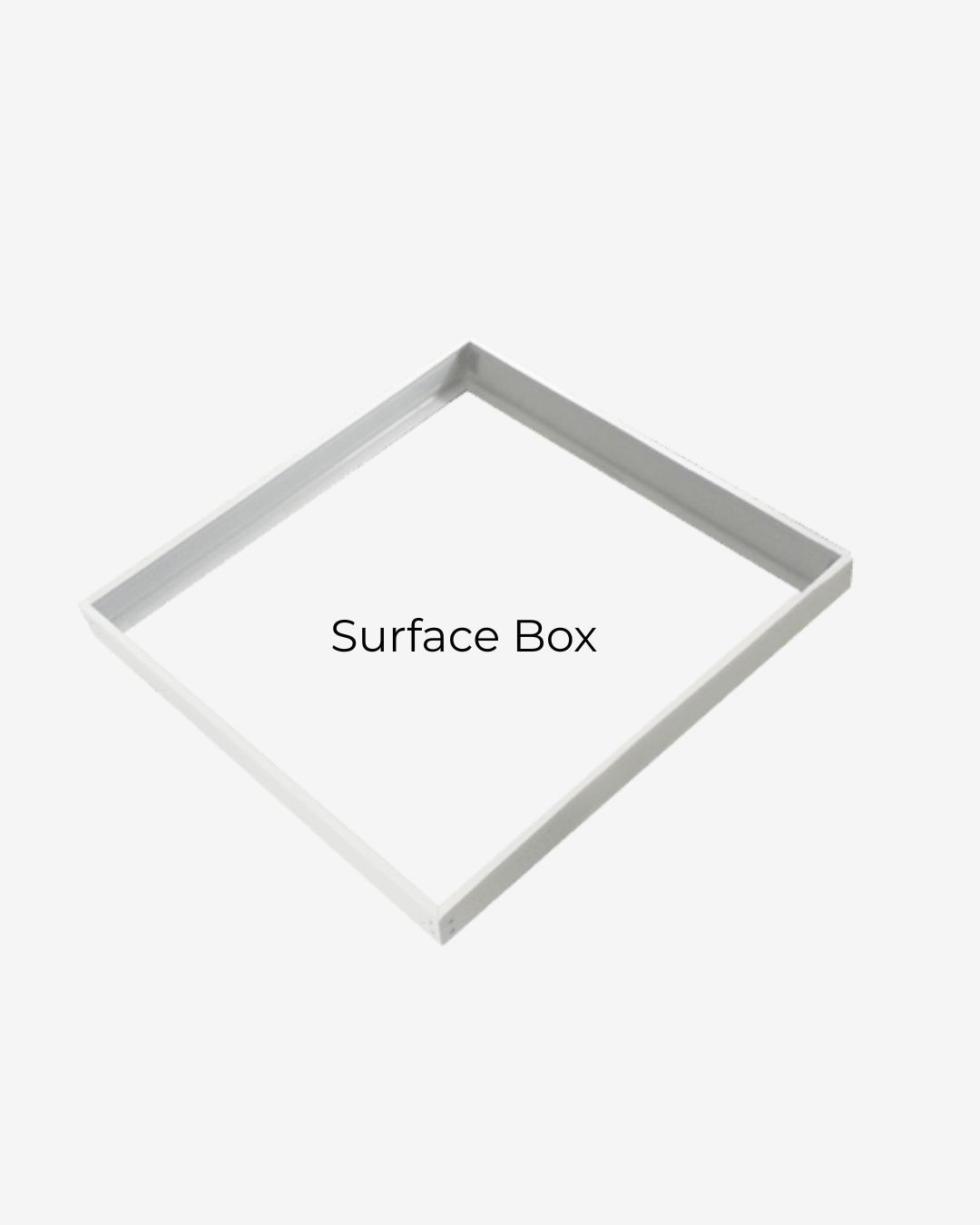

| EN-DL03-48SF | 28–48W | 610 × 610 | Surface Mount | 48 | Surface Mount |
Specifications
| Parameter | Details |
|---|---|
| LED Type | SMD, Gold-Wire LM80 Certified |
| Efficacy | 140–150 lm/W |
| CRI | >80 (90/96 on request) |
| Power Range | 28W – 48W |
| Input Voltage | 220–240V AC |
| CCT Options | 2700K / 3000K / 4000K / 6500K |
| Dimming | TRIAC / 0-10V |
| Surge Protection | 2.5–4kV |
| Body Material | Aluminium Frame |

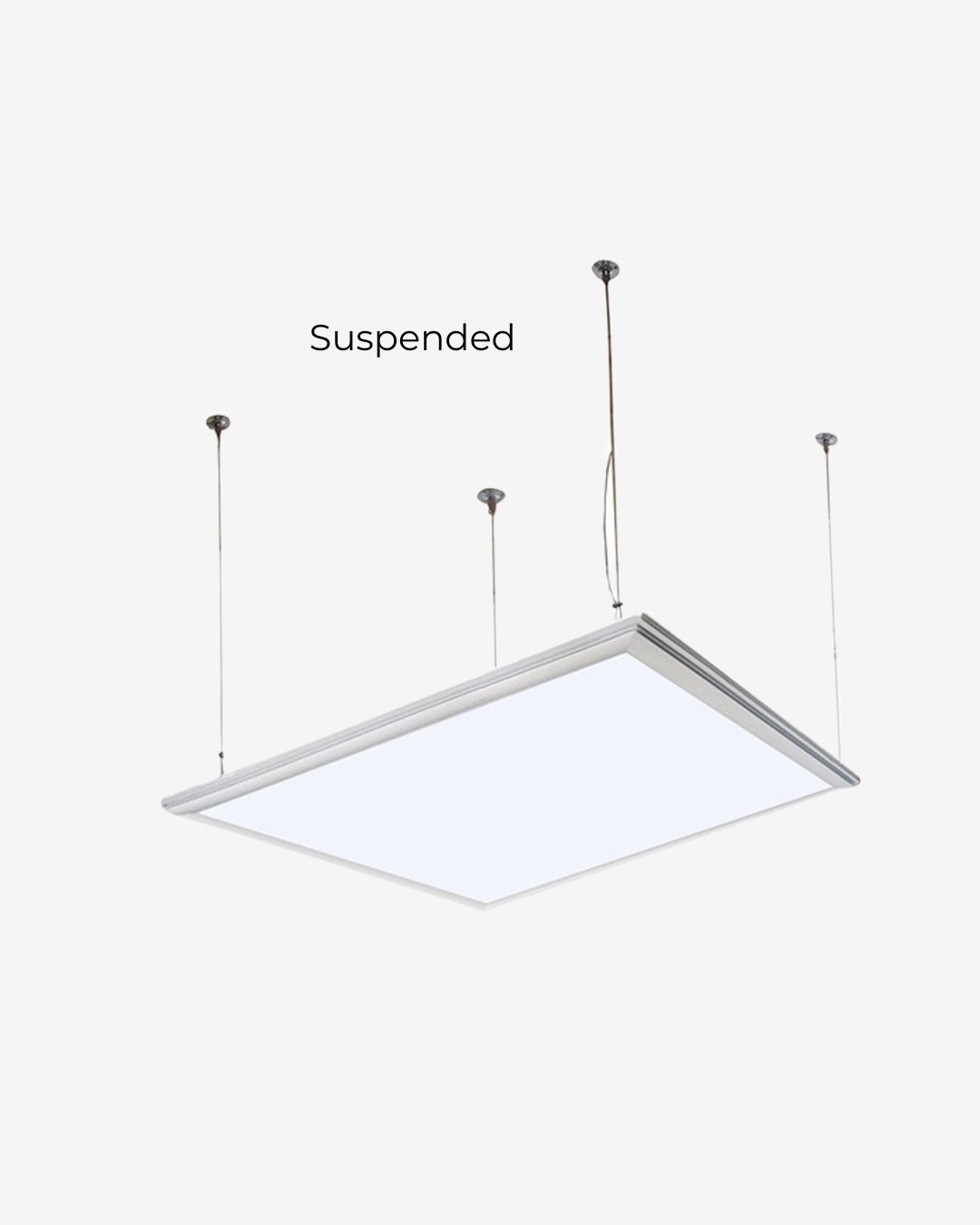

| Mounting | Recessed (Grid Ceiling) / Surface Mount / Suspended |
| IP Rating | IP20 (Indoor) |
Applications
Corporate offices, conference rooms, hospitals, schools, universities, government buildings, retail spaces, reception areas, and any commercial interior using standard 600×600mm grid ceilings.
