The EN-CY07 Prisma is a square-profile surface-mounted cylinder light featuring a distinctive 38° beam angle for controlled, focused illumination. Available in single and double-head configurations, the Prisma delivers precise directional lighting ideal for retail displays, art galleries, hospitality interiors, and modern commercial spaces where targeted accent lighting is essential.

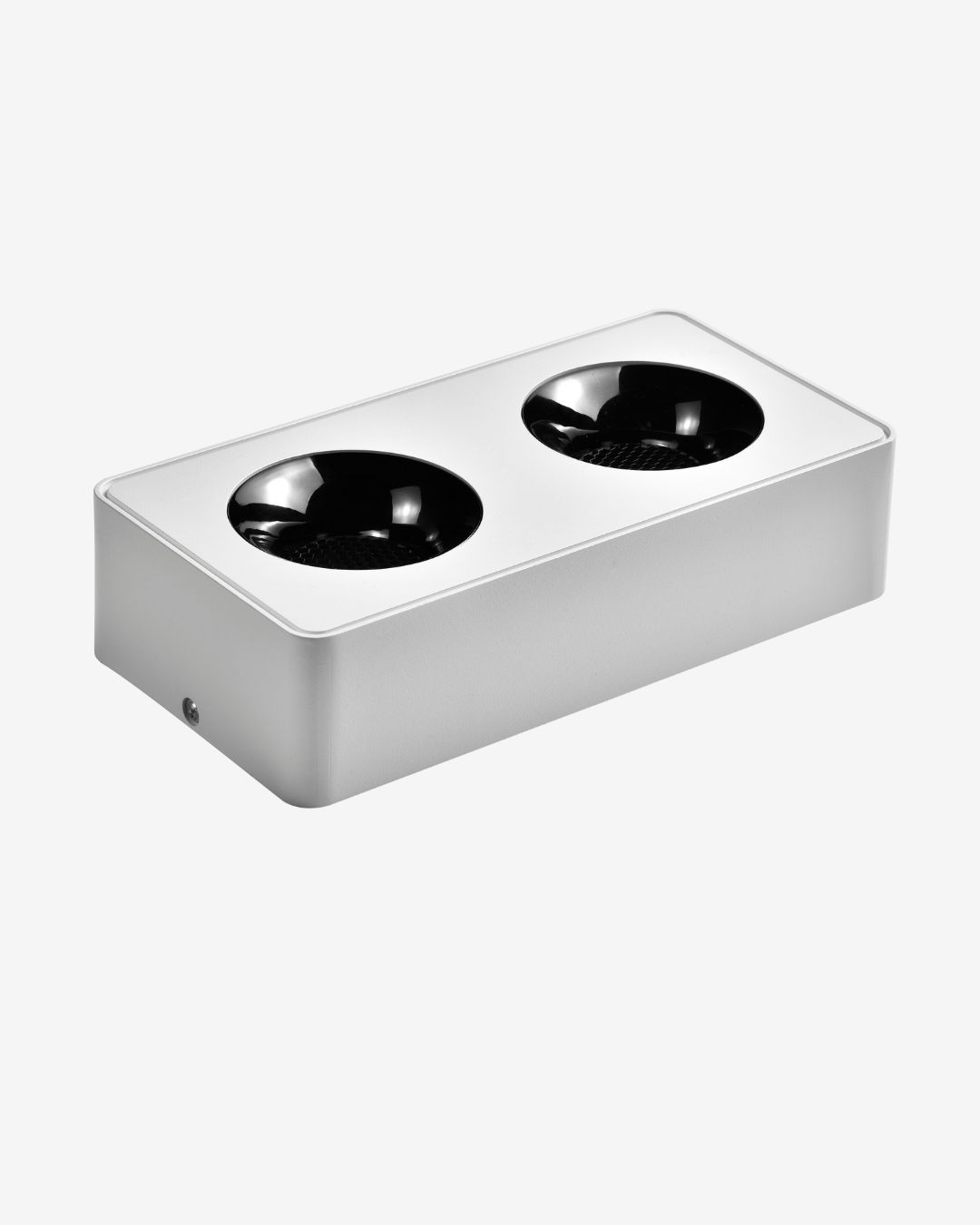

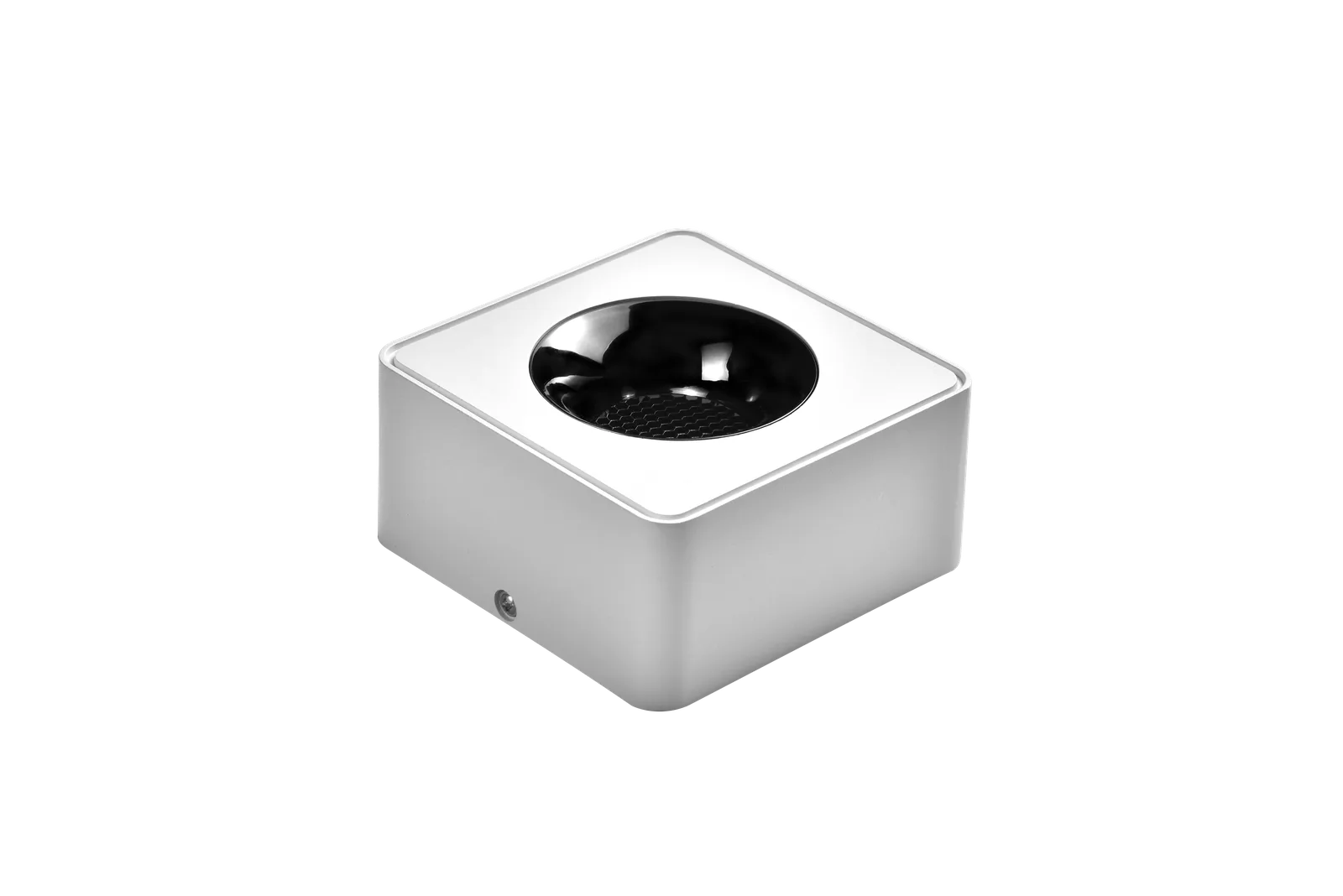

Two variants available: EN-CY07-12 (Single head, 12W, 117×117×H55mm) and EN-CY07-24 (Double head, 2×12W, 226×117×H55mm). An optional honeycomb louvre accessory provides enhanced glare control for applications requiring visual comfort.
Key Features
- Single-head (12W) and double-head (2×12W) configurations for flexible layout planning
- Precise 38° beam angle for controlled accent and display lighting
- Optional honeycomb louvre for superior glare reduction
- High-efficiency 140–150 lm/W gold-wire LM80-certified LEDs, CRI > 80 (CRI 90/96 upon request)
- BIS-certified HPF driver with THD < 10% and 2.5–4kV surge protection
- Over-voltage protection (OVP) rated at 440V for electrical safety
- Optional Cree, Bridgelux, or Edison LED upgrades; optional Fulham, Osram, or Philips drivers
- TRIAC and 0/1–10V dimming compatible
