The EN-CY05 Axis is a premium surface-mounted cylinder downlight available in square and round profiles. Delivering 12W of focused illumination, the Axis combines a clean geometric silhouette with high-performance optics, making it ideal for retail displays, hospitality environments, gallery lighting, and modern residential interiors where ceiling-mounted accent lighting is required.

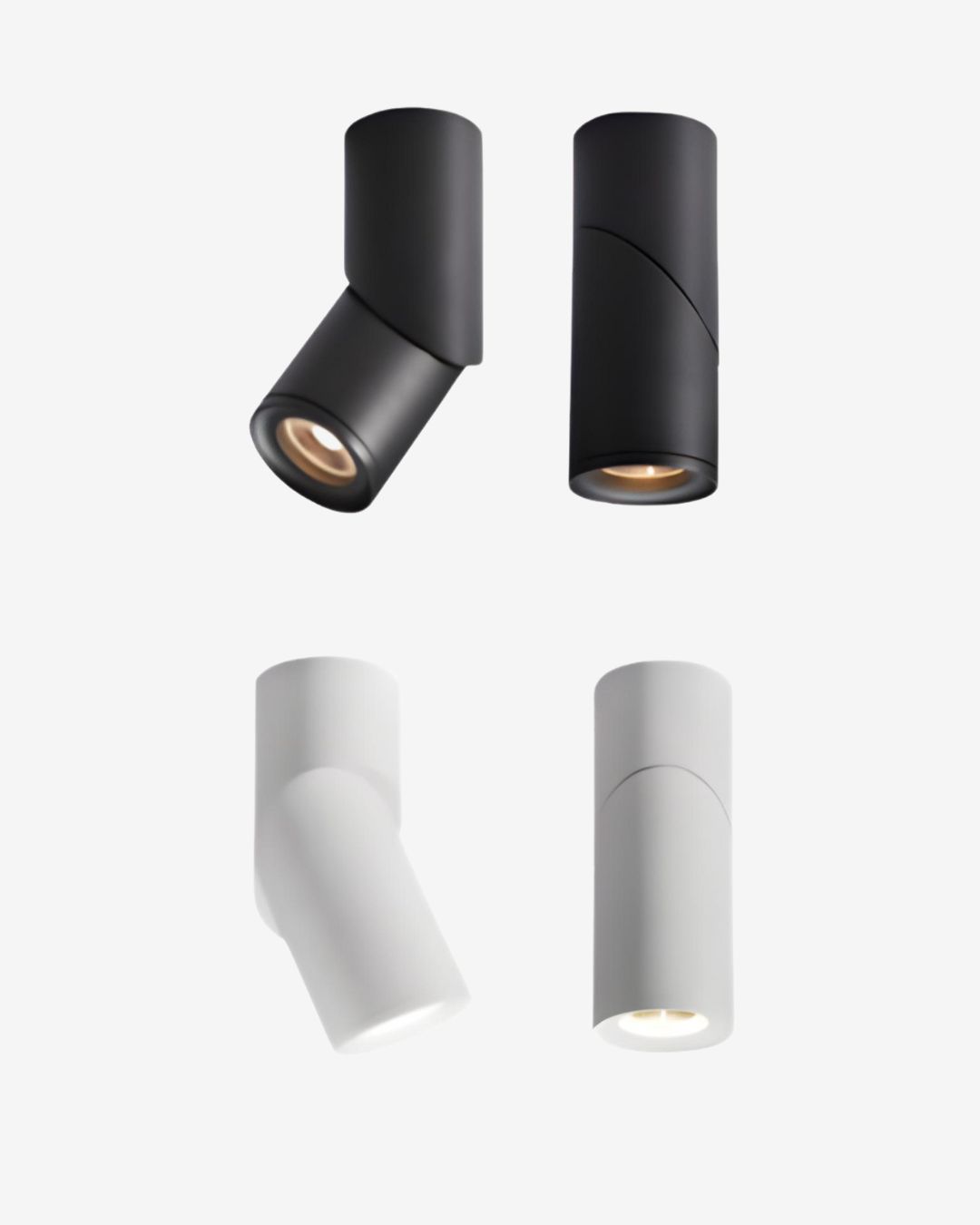

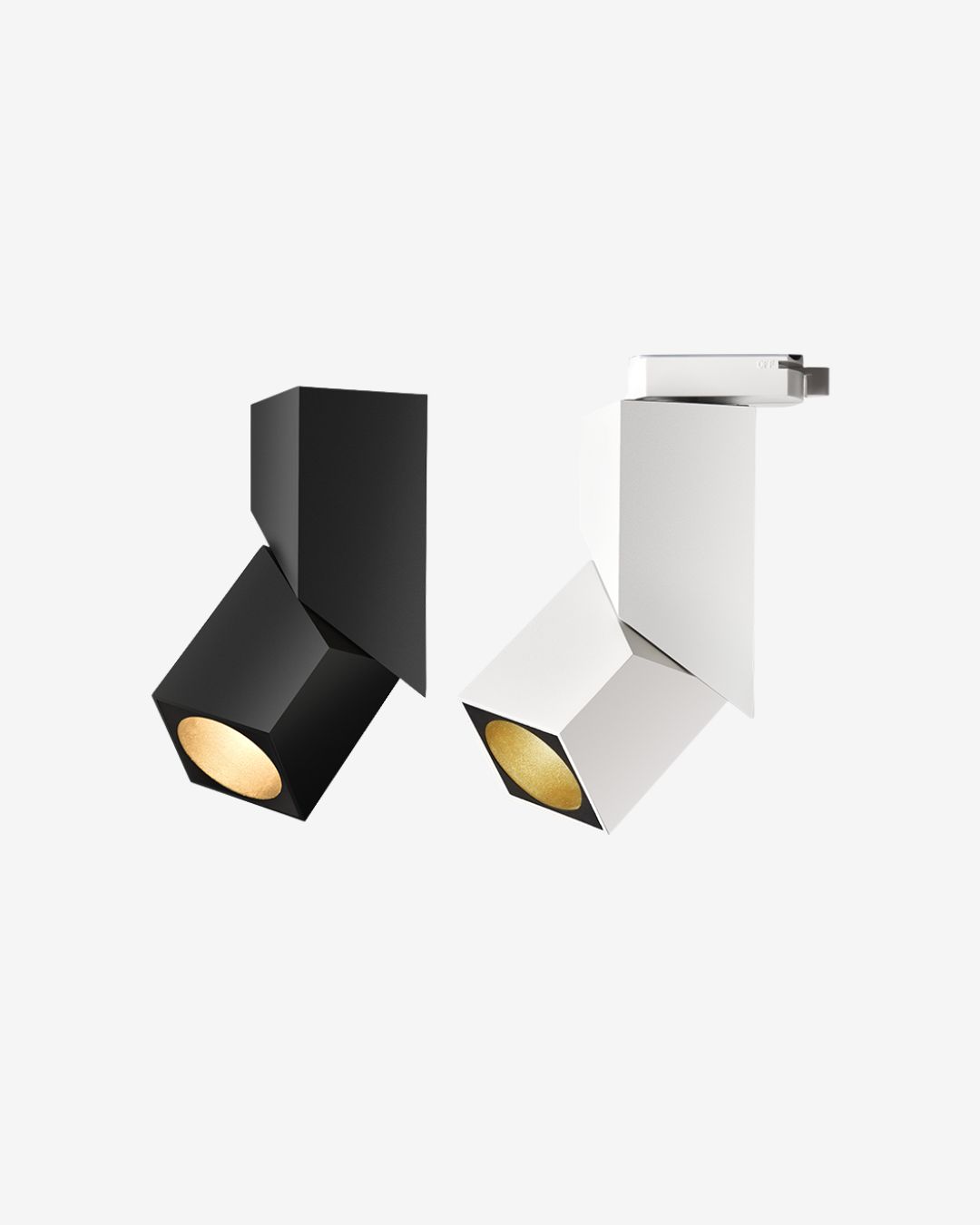

Available in two variants: EN-CY05-SQ (Square, 12W, 60×185mm clearance) and EN-CY05-RD (Round, 12W, 55×162mm). A track-light mounting option is also available for integration with standard track systems, adding further versatility to this series.
Key Features
- Square and Round profiles for flexible architectural matching
- 12W output with precision optics for focused downlighting
- Track-light variant available for rail-mounted applications
- High-efficiency 140–150 lm/W gold-wire LM80-certified LEDs, CRI > 80 (CRI 90/96 upon request)
- BIS-certified HPF driver with THD < 10% and 2.5–4kV surge protection
- Over-voltage protection (OVP) rated at 440V for electrical safety
- Optional Cree, Bridgelux, or Edison LED upgrades; optional Fulham, Osram, or Philips drivers
- TRIAC and 0/1–10V dimming compatible
