EN-CB34 Zoom

Know More

Zoom out tilt of 90 degrees. Rotatable 180 degrees

MODEL POWER OUTER SIZE CUTOUT
EN-CB34-12 12W ⌀ 90 x H68 ⌀ 75
EN-CB34-20 20W ⌀ 165 x H139 ⌀ 145
EN-CB34-30 30W ⌀ 165 x H139 ⌀ 145
EN-CB34-40 40W ⌀ 165 x H139 ⌀ 145
LED 140-150 lumens/watt gold-wire LM80 certified LED, CRI >80 (90/96 upon request)
Driver BIS-certified, HPF, THD<10%, minimal ripple, 2.5-4 kV Surge protection, OVP 440V
Optional LEDs Cree | Bridgelux | Edison
Optional Drivers Fulham | Osram | Philips

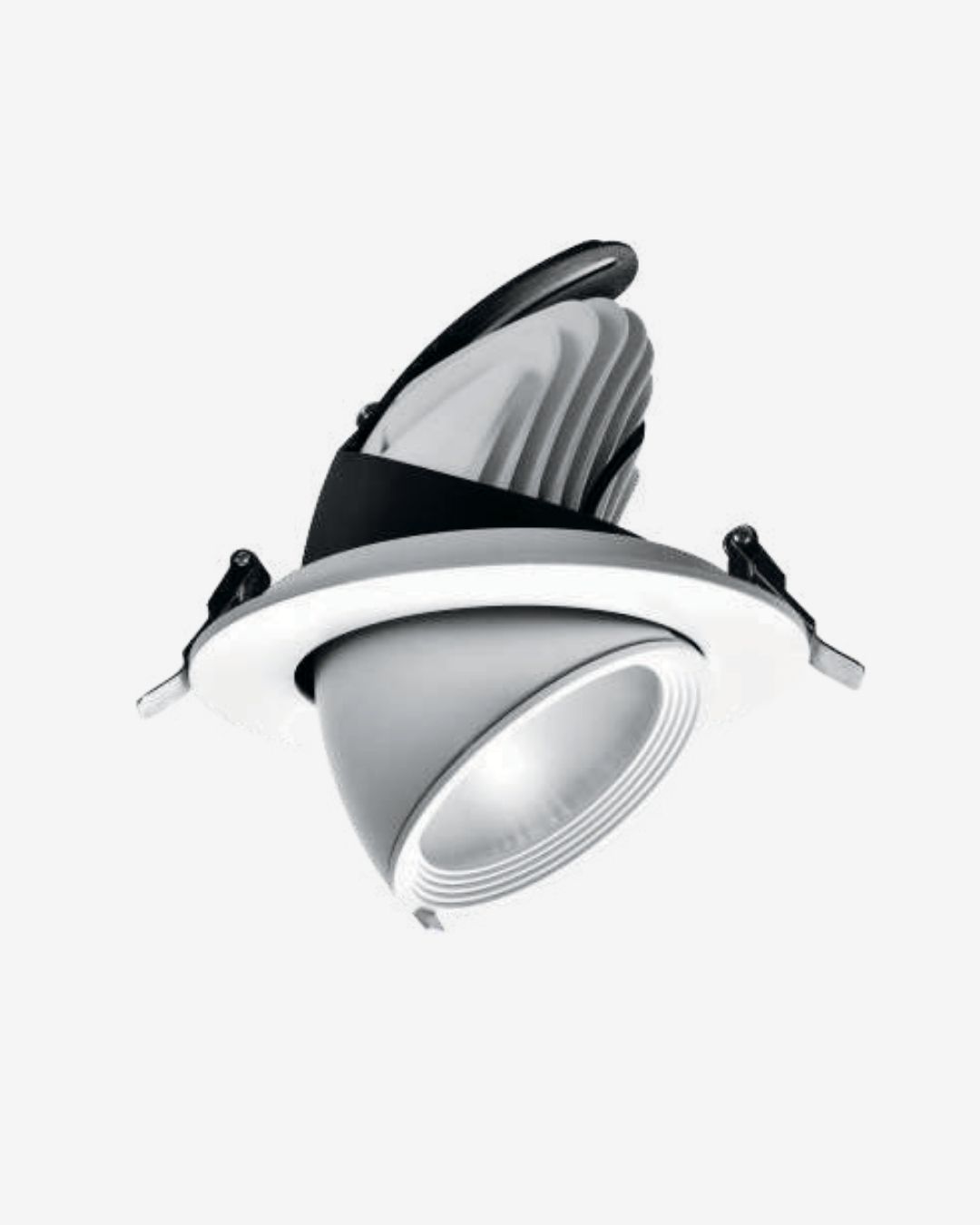

The EN-CB34 Zoom is a professional-grade adjustable recessed COB spotlight from Enlighten Pro, featuring an advanced zoom optic system combined with full tilt and rotation capability. With 90-degree tilt and 180-degree rotation, plus adjustable beam zoom, the Zoom gives lighting designers unparalleled control over beam direction and spread — all from a single recessed fixture.

Available in 12W, 20W, 30W, and 40W configurations, the Zoom scales from intimate accent lighting to high-output commercial illumination. The zoom-out optic allows real-time beam angle adjustment without changing reflectors, making it ideal for retail environments, art galleries, museums, exhibition spaces, and hospitality venues where display requirements change frequently. High-efficacy LEDs deliver 140–150 lm/W using gold-wire bonded, LM80-certified chips for exceptional energy performance.

Key Features

  • Zoom optic system for adjustable beam angle — change beam spread without swapping reflectors
  • 90° tilt and 180° rotation for precise directional aiming from any ceiling position
  • Four wattage options (12W/20W/30W/40W) for scalable output from accent to high-power illumination
  • Premium gold-wire bonded LED chips with LM80 certification and 140–150 lm/W efficacy
  • CRI >80 standard with CRI 90 and CRI 96 options available on request
  • BIS-certified driver with high power factor and THD <10% for stable, flicker-free operation
  • TRIAC and 0/1-10V dimming compatibility for flexible scene control
  • Available with Bridgelux, Cree, Citizen, Seoul, or Osram LED chip options

Disclaimer: Product images and specifications shown on this page are indicative only and may vary from the actual product. Please verify all specifications with our Sales & Support team before placing an order. Contact us at sales@enlighten.biz
